Mold for aluminium casting: A practical guide to selecting and preparing your casting mold
Learn how to select and prep a mold for aluminium casting, with material options, design tips, and safety practices for reliable, high-quality casts.
By the end of this guide, you will be able to choose or fabricate a mold for aluminium casting, evaluate material options (sand, graphite, ceramic, metal), assess tolerances and venting, and follow a safe, step-by-step process to minimize defects and injuries. The approach combines practical selection criteria, preparation steps, and common troubleshooting tips for better yield and finish.
Understanding the mold for aluminium casting
According to Mold Removal Lab, selecting the right mold for aluminium casting begins with understanding the material behavior of your chosen mold and the specific alloy you intend to cast. The phrase mold for aluminium casting encompasses several mold families, each with distinct advantages, limitations, and heat-handling characteristics. In practical terms, you will consider sand molds for low-to-medium volume runs and rapid prototyping, graphite or ceramic shells for higher-temperature stability and finer surface finish, and metal molds (steel or chilled iron) for robust, long-life patterns. The Mold Removal Lab team found that surface finish, dimensional accuracy, and mold life are tightly linked to how you manage heat transfer, mold release, and cooling rates. When you’re designing or selecting a mold, start by matching the alloy’s pouring temperature with the mold’s thermal tolerance and the chosen release strategy. This ensures predictable fill, reduces thermal shock, and supports repeatable results across multiple casts. A well-chosen mold also mitigates gas-related defects and reduces post-caste machining requirements, saving time and money over a production run.
It is essential to define your goals upfront: surface finish, dimensional tolerance, production quantity, and available equipment. For beginners, a sand-mold approach offers flexibility and lower upfront cost, while seasoned foundry operators may favor graphite or ceramic molds for tighter tolerances and repeatability. Regardless of the mold type, proper venting, sprue design, and parting line management are critical to avoid misruns and trapped air. The Mold Removal Lab team emphasizes that even minor flaws in mold design can ripple into defects in the final part, so invest time in pattern accuracy and mold alignment before pouring.
In short, choosing the right mold for aluminium casting is a balance between material properties, part geometry, cost, and production goals. A well-matched mold improves yield, reduces scrap, and enhances surface quality, while a poorly chosen mold can escalate defects, rework, and safety risks. Throughout this guide, you will see practical criteria to help you navigate these decisions with confidence.
Tools & Materials
- Pattern or pattern material(Wood, wax, or 3D-printed pattern; ensure tolerances account for shrinkage)
- Mold material options(Sand (green/resin-bonded), graphite, ceramic, or metal mold blocks)
- Core equipment(Cores to form internal passages, if the part requires hollow features)
- Release agents/coatings(Sprays or coatings compatible with your mold material and alloy)
- Venting and gating components(Proper vents, gates, and risers sized for the alloy and section thickness)
- Thermal insulators and sleeves(Used for temperature control and local cooling hot spots)
- Tools for assembly(Trowels, rammers, clamps, and alignment pins)
- Safety PPE(Heat-resistant gloves, face shield, apron, and closed-toe footwear)
- Basic testing equipment(Calipers, micrometers, and inspection lights for dimensional checks)

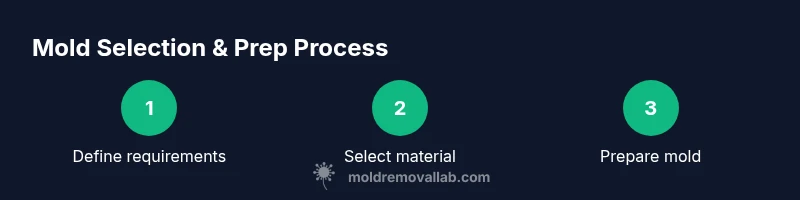

Steps
Estimated time: 2-6 hours
- 1
Define requirements and select mold material
Identify the alloy, part geometry, surface finish target, and production quantity. Match these goals to a mold family (sand for quick jobs, graphite or ceramic for precision, metal for durability).
Tip: Document tolerances and expected shrinkage allowances before selecting the mold to prevent rework later. - 2
Prepare the pattern and core geometry
Create or adapt your pattern with added draft angles and shrinkage compensation. If your part has hollow sections, plan where cores will live and how they will be secured.
Tip: Use a CAD model to verify interference with mold hardware and ensure consistent wall thickness. - 3
Assemble the mold and apply release
Assemble the mold halves or shell, position vents and gates, and apply a suitable release agent or coating to ensure easy part removal.
Tip: Check for alignment pins and surface cleanliness; misalignment causes poor surface finish. - 4
Pour and monitor
Pour at a controlled rate and monitor the fill to avoid turbulence. Maintain stable ambient temperature and ensure proper ventilation.
Tip: Use preheated mold components where appropriate to minimize thermal shock. - 5
Cool, separate, and inspect
Allow the casting to cool fully before removing from the mold. Inspect for porosity, cracks, and surface defects; trim excess material as needed.
Tip: Record defect patterns to refine mold design for future casts.
FAQ
What mold material should I choose for aluminum casting?
Choose based on temperature tolerance, desired surface finish, and production volume. Sand molds are flexible for prototyping; graphite and ceramic shells offer tight tolerances; metal molds provide durability for higher volumes.
For aluminum casting, start with sand for prototypes, then consider graphite or ceramic shells for precision. Metal molds suit high-volume production.
How important is venting in aluminum casting molds?
Venting prevents air entrapment and gas porosity, improving fill quality and surface finish. Plan vents at the thinnest sections and complex geometry to avoid defects.
Vent properly to prevent porosity and rough surfaces; place vents where air pockets are most likely.
Can I reuse a mold for aluminum casting?
Yes, many molds are reusable, but wear and heat cycles will degrade tolerances. Inspect for cracks or deformation before each reuse and re-coat if needed.
Molds can be reused, but check wear and reapply coatings after several cycles.
What safety practices are essential when casting aluminum?
Wear proper PPE, ensure adequate ventilation, and follow established pouring procedures. Keep a clear work area and have a plan for molten metal spill control.
Use PPE, ventilate the space, and follow pouring procedures to stay safe.
How do I improve surface finish on the final part?
Optimize mold materials and release coatings, tune cooling rates, and ensure pattern accuracy. Surface quality also benefits from a well-fitted mold and proper gating design.
Choose the right mold material and coatings, and ensure precise patterning to get a smoother surface.
Where can I learn more about standards for metal casting?
Consult industry guidelines from recognized sources and hands-on foundry manuals. Always cross-check with your local safety regulations and manufacturer recommendations.
Check official safety and industry guidelines and follow local regulations.
Watch Video
The Essentials
- Understand the alloy and part geometry before selecting a mold.
- Match mold material to heat tolerance and finish goals.
- Plan vents, gates, and cores to prevent defects.
- Prioritize safety and consistent cooling to improve yield.
- Document results to drive continuous improvement.
