How to Make a Mold for Casting: Step-by-Step Guide
Learn how to make a mold for casting safely and effectively. This guide covers material choices, mold types, release agents, curing times, and troubleshooting for resin, plaster, and more.
This guide shows you how to make a mold for casting using a master pattern and silicone or plaster molds. You’ll learn material choices, setup, safety, and basic troubleshooting to get reliable casts. Follow the steps carefully to minimize air pockets, ensure clean demolding, and protect yourself during the process.
What is mold casting and why it matters
Mold casting is a versatile technique that lets you reproduce objects by creating a negative impression, or mold, of a master pattern. By choosing the right mold material—silicone for flexibility, plaster for rigid molds, or investment materials for high-detail work—you can cast a variety of media, including resin, plaster, and low-melting metals. For hobbyists and homeowners, learning how to make a mold for casting expands creative options while offering practical practice in controlling pour flow, air entrapment, and cure timing. Throughout this guide, we reference best practices from Mold Removal Lab to ensure safety and effectiveness for non-industrial settings. The goal is a clean, repeatable mold that captures details without damaging the master or surrounding work area.
Mold options: silicone, plaster, or investment
When selecting a mold material for casting, your choice should hinge on detail, flexibility, heat tolerance, and release. Silicone elastomers excel at capturing fine textures and releasing complex geometries with minimal tearing. Plaster provides stiff, low-cost molds ideal for quick experiments, but is less forgiving for intricate parts. Investment molds, though more technical, deliver excellent surface fidelity for high-detail casts. For beginners, a simple two-part silicone mold around a master pattern offers a forgiving starting point, while more experienced makers experiment with plaster or investment methods for specific casting media. Always plan for mold release to protect both the pattern and the mold during demolding.
Safety first: personal protective equipment and ventilation
Casting projects generate dust, fumes, and vapors depending on the media used. Protect yourself with safety glasses, gloves, and a respirator when sanding, cutting, or heating casting materials. Work in a well-ventilated area or use an exhaust fan to reduce exposure to fumes. Keep children and pets away from the workspace. Read product data sheets and follow all manufacturer safety recommendations. The Mold Removal Lab team emphasizes that good ventilation and proper PPE are essential to reducing risk in home casting projects.
Planning your project: materials, master pattern, and workflow
Begin by selecting your master pattern—the object you want to reproduce—and decide which mold type best fits your casting media. Create or source a master pattern with stable dimensions, because shrinkage or warping in the mold can affect the final cast. Build a suitable mold box or containment to hold the silicone or plaster around the pattern. Gather release agents, mixing tools, and curing aids before you start. Mapping out a clean workflow reduces surprises during demolding and helps you schedule curing times without overheating or overworking the material.
Common issues: air bubbles, sticking, warping
Air bubbles can ruin surface detail and must be minimized. Degassing silicone before pouring, using release agents appropriately, and pouring slowly from one side all help reduce trapped air. It’s common for plaster molds to stick to patterns if release is insufficient, so always verify the release layer thickness. Warping can occur if the mold box is unstable or if materials cure unevenly in temperature fluctuations. Small test pours with a scale model can help you anticipate and address these challenges before committing to a full-size cast.
Post-casting care: cure times, demolding, and finishing
Allow ample curing time according to the material’s instructions before demolding. Demold gently to preserve mold integrity and pattern fidelity. After casting, clean and inspect the mold for nicks or tears; repair with additional silicone or plaster as needed. Sand or polish the cast item for a smoother surface, and seal with compatible finishes if the media requires it. Proper storage—kept flat, away from direct sun and heat—extends mold life and preserves fine details for future uses.
Maintenance and storage of molds
Molds last longer when they are cleaned after use and stored in a cool, dry environment. Label each mold with its intended casting material and date to track wear. Practice periodic checks for hairline cracks or soft spots, especially after multiple casts or high-temperature curing. Rotate use so no single mold bears all work, and consider applying a light protective coating if your mold is frequently reused. Routine maintenance reduces downtime and preserves texture fidelity across sessions.
Real-world examples and project ideas
A silicone mold around a small figurine can yield dozens of resin copies for crafts or jewelry. Plaster molds suit quick, single-color builds like decorative ornaments or tiles. For higher-detail casts, invest in a silicone-mold-and-resin workflow with a vented mold box to optimize air escape. By planning a few starter projects—button charms, mini tiles, or architectural reliefs—you’ll gain confidence in handling the nuances of mold flicking, venting, and demolding while staying within a safe, home-friendly setup.
Quick-start checklist for beginners
- Define your master pattern and target casting material
- Choose mold type (silicone for detail, plaster for stiffness)
- Gather release agents, tools, and PPE
- Build a stable mold box and prepare a clean work surface
- Mix and pour carefully to minimize air pockets
- Allow full cure time before demolding and finishing
Tools & Materials
- Silicone rubber kit (two-part)(Flexible mold material for detailed patterns)
- Mold release agent(Thin, even coating to prevent sticking)
- Mixing cups and stir sticks(Separate cups for silicone parts; label clearly)
- Digital scale(Precise measurement for consistent mix ratios)
- Gloves (nitrile) and safety glasses(Personal protection during mixing and casting)
- Master pattern or model(The object you want to reproduce)
- Mold box materials (acrylic or foam board)(Create a snug, leak-free containment)
- Clips or tape(Hold mold box together during pour)
- Rubbing alcohol or isopropyl wipe(Clean surfaces before applying release)
- Optional casting resin or plaster(Select based on project; start with resin for beginners)
- Sandpaper or deburring tool(Finishing after demolding)

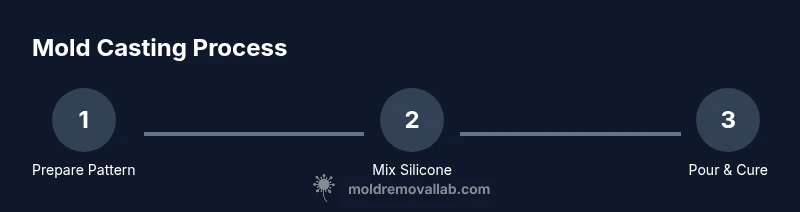

Steps
Estimated time: 6-8 hours total (plus curing times)
- 1
Prepare the master pattern
Inspect the master pattern for smooth surfaces and dimensions. Clean any dust or debris and prime if needed to improve mold fidelity. Apply a thin layer of release agent if the material commonly sticks to itself. This ensures a clean, precise negative for casting.
Tip: Use a light dusting of talc on very smooth surfaces to reduce suction during demolding. - 2
Build the mold box
Construct a snug mold box around the master so silicone or plaster can flow freely but not leak. Seal the edges with tape or clamps to prevent leaks. Add ventilation openings if you anticipate large volumes of air release.
Tip: Leave a small master cavity gap for air to escape without compromising mold integrity. - 3
Apply release and mix silicone
Coat the master with a thin layer of release agent, then prepare the silicone according to the package directions. Measure precisely and mix slowly to minimize air entrapment. Let the mixture rest briefly to release any trapped bubbles before pouring.
Tip: Pour slowly along the walls of the mold box to prevent air from forming pockets under the pattern. - 4
Pour silicone over the pattern
Pour the silicone in a thin stream from one corner, allowing it to envelop the master evenly. Avoid overfilling; plan for a two-part mold if needed. Use a degassing step if you have a vacuum setup or gently tap the mold to release bubbles.
Tip: Keep the pour height low to minimize air entrapment. - 5
Cure the mold
Allow the silicone to cure as specified by the manufacturer, typically several hours at room temperature. Do not disturb the mold during curing to prevent warping. Once cured, inspect for voids or tears.
Tip: Maintain a stable temperature to prevent uneven curing. - 6
Demold and inspect
Carefully remove the mold from the box and separate it from the master. Check for fidelity of details and look for any cracks or missing features. Trim any flash material if necessary.
Tip: Use a fresh blade or deburring tool for clean edges. - 7
Prepare casting material
Mix your chosen casting material according to its data sheet. If using resin, ensure additives and pigments are compatible with your silicone mold. Stir gently to minimize air incorporation.
Tip: Do a small test mix to confirm color and cure behavior before full-scale casting. - 8
Cast into the mold
Pour the casting material into the mold cavity, filling to the intended level. Gently vibrate or tap to release any trapped air. Monitor for complete fill but avoid overfilling to prevent spills.
Tip: Work in a well-ventilated area; some resins can emit fumes during cure. - 9
Cure and demold the cast
Allow the cast to cure fully as per the material’s guidelines. Remove the finished piece from the mold with care, to avoid tearing the silicone or distorting the cast. Clean the mold after demolding for future reuse.
Tip: If the cast sticks, reapply a light release agent before the next pour. - 10
Finish and inspect the cast
Trim any excess flash, sand edges, and apply finishes as desired. Inspect for surface defects and compare with the master pattern to ensure accuracy. Store the mold properly to preserve its shape and texture for future casts.
Tip: Document any issues to improve your next mold and casting cycle.
FAQ
What is the best mold material for casting?
Silicone is popular for castings due to its flexibility and high detail capture. Plaster molds are cheaper and stiff, good for simple shapes. Choose based on your casting media and desired finish.
Silicone is great for detail and release, while plaster is cheaper and stiffer. Pick based on your project.
Do I need a mold release agent?
Yes. A thin release layer helps prevent sticking and protects both the mold and master during demolding. Reapply as needed between pours.
Yes, a release agent helps you demold without damage.
How long does silicone take to cure?
Most silicone cures within several hours at room temperature. Always follow the manufacturer’s data for best results and check cure indicators before demolding.
Usually several hours; follow the product timing for best results.
Can I cast metal in a silicone mold?
Low-melting metals can sometimes be cast in silicone molds designed for heat tolerance, but most silicone molds are not suitable for high temperatures. Use investment or ceramic molds for metals.
Silicone works for some low-temp metals, but check heat limits and consider other molds for metals.
Why are air bubbles a problem and how can I reduce them?
Air bubbles ruin surface detail. Reduce them by slow pouring, tapping to release trapped air, and degassing if possible. Small test pours help fine-tune technique.
Air bubbles reduce detail; pour slowly and tap to release them.
How should I store a mold after use?
Clean the mold, inspect for wear, and store flat in a cool, dry place away from direct sunlight. Label with date and media to track wear over time.
Clean, inspect, then store in a cool, dry place and label it.
Watch Video
The Essentials
- Plan your mold type based on detail and material.
- Use proper release agents to protect molds and masters.
- Control air bubbles through careful pouring and degassing when possible.
- Match casting material to mold capabilities for best results.
- Store molds properly to maximize longevity.
