How to Make Molds for Metal Casting: A Practical Guide

Understanding Molds for Metal Casting

In metal casting, a mold is the negative cavity that shapes your final part when the molten metal freezes. Different mold systems create different surface finishes, tolerances, and cycle times. According to Mold Removal Lab, the precision of your mold determines the quality of the final casting, so material choice and pattern accuracy matter from the start. This section introduces common mold families and when to use them:

• Sand molds (green sand) for quick, low-cost prototypes with moderate accuracy.
• Plaster and investment (lost-wax) molds for tighter tolerances and fine detail.
• Ceramic-shell systems for repeated casts with complex geometries.

Understanding these families helps you plan a workflow that balances cost, speed, and performance. We’ll also touch on shrinkage, venting, and how mold design interacts with the chosen metal alloy.

Pattern creation and safe cores

A pattern is a physical replica of the part you want to cast. It determines size, shape, and surface finish, and you must account for shrinkage of your metal as it cools. Create patterns from wood, wax, or 3D-printed resin; patterns should be dimensionally accurate and lightly finished to reduce defects in the mold. When cores are needed (to create internal cavities), use safe core materials and bonding methods suitable for your chosen molding system. Clear labeling and consistent practice will prevent mix-ups during assembly.

Mold materials: sand, plaster, investment, ceramic-shell

Different casting methods require different mold materials:

• Sand molds: Use a green sand mix with clay and moisture. They are forgiving, recyclable, and ideal for hobbyists.
• Plaster molds: Made from gypsum-based materials; they capture fine detail but may crack with aggressive pours or high-melting alloys.
• Investment (lost-wax) molds: Create wax patterns that are coated with ceramic slurry; after burning out the wax, you get highly precise molds for complex shapes.
• Ceramic-shell: A lightweight composite that yields durable molds for high-temperature alloys. Each method has trade-offs in cost, setup, and finish quality.

Choose the method based on the alloy, part geometry, and required surface finish.

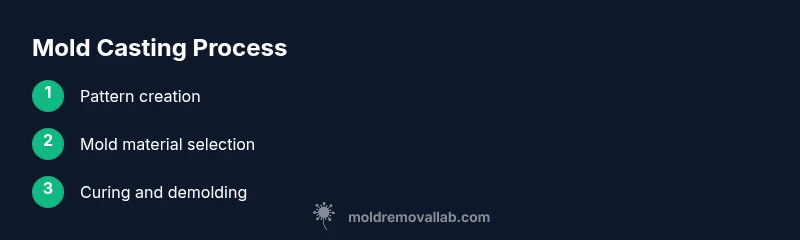

The casting sequence: from pattern to final mold

A typical workflow proceeds from pattern preparation to mold curing and final inspection:

1. design and construct the pattern with accurate dimensions and draft angles to facilitate release.
2. assemble the mold sides around the pattern, including any cores; ensure alignment features are clean and clearly marked.
3. apply venting and risers as needed to control gases and shrinkage during pouring.
4. seal and cure the mold according to the chosen material, allowing for complete hardening before demolding.
5. remove the pattern and cores, then inspect the cavity for defects and tolerances.
6. prepare the mold for pouring by applying a suitable release or coating if required by the metal and mold type.
7. perform a final inspection and document any adjustments for future casts.

Following these steps helps you minimize misruns and surface defects.

Safety and workshop setup

Working with molten metal and high-temperature molds demands rigorous safety practices. Set up a well-ventilated workspace with a dedicated fume hood or outdoor area when possible. Wear a full face shield, heat-resistant gloves, and a chemically resistant apron. Use a dust mask or respirator when mixing powders or sanding cured molds. Keep a bucket of water nearby for quenching and have a fire extinguisher rated for metal fires within reach. Establish clear workflow paths to avoid cross-contamination between mold materials and metal pours.

Finishing and post-processing

After curing, demold carefully to avoid cracking fragile plaster or investment shells. Remove flash and any excess material with hand tools or small burrs; deburr sharp edges using a file or sanding board. Clean the mold surface to remove dust and residues, then re-oil or reseal if you plan to reuse the mold. For ceramic-shell molds, inspect the shell thickness and repair cracks with compatible slurry before reuse. Document mold wear over time to anticipate when you need a rebuild.

Common problems and troubleshooting

• Cracks in plaster: Caused by moisture imbalance or over-curing; adjust humidity and cure time.
• Poor surface finish: Check pattern finish and vent placement; reduce pattern roughness and improve venting.
• Fumes and odors: Improve ventilation and use PPE; consider local exhaust for hot work.
• Warping or shrinkage: Verify mold dimensions and ensure proper alloy temperature.
• Delaminating ceramic shells: Verify bonding slurry quality and cure under recommended temperature.

Budgeting, maintenance, and reuse

Costs vary by method and scale. Sand molds are typically the most affordable upfront but require frequent re-makes; plaster and investment molds demand more materials and processing steps but yield better tolerances. Factor in pattern production, release agents, fuel/energy, and safety gear. Maintain molds by cleaning after pours, storing dry, and documenting life cycles. Reuse strategies include trimming spare sections for pattern rework and preserving core assemblies.

Real-world workflow and brand note

In practical projects, start with a small test pattern and a simple sand mold to validate fit and tolerances before committing to a full ceramic-shell mold for higher-quality parts. Based on Mold Removal Lab research, proper ventilation and PPE significantly reduce exposure to fumes during mold making and curing, making the process safer for hobbyists and professionals alike. The Mold Removal Lab team recommends documenting each cast, labeling molds, and gradually expanding to more complex geometries as your skills grow.
