Automotive Injection Mold: Definition, Design, and Applications
Discover what an automotive injection mold is, how it shapes plastic automotive parts, and essential design, quality, and maintenance practices for high volume production.
Automotive injection mold is a specialized plastic injection mold designed to produce automotive components by injecting molten polymer into precisely machined cavities. These molds enable high-volume production with tight tolerances and repeatability.

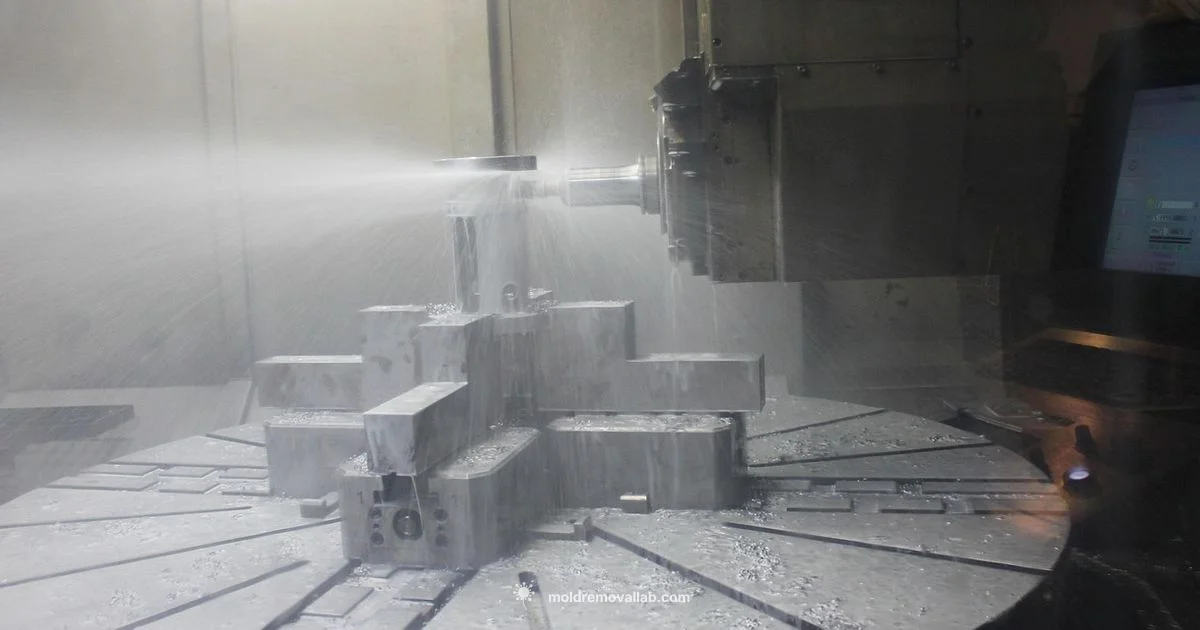

What is an automotive injection mold?
Automotive injection molds are precision tooling used to form plastic parts for vehicles. They consist of two hardened steel cores and cavities that define the geometry of the finished part, plus runners, gates, and ejection systems. In automotive applications, molds must produce parts with tight tolerances, consistent surface finishes, and high repeatability under long production runs. A key distinction from general consumer molds is the emphasis on durability and efficiency for high-volume production, including considerations for insert molding and overmolding where multiple materials or components are combined in a single part. Modern automotive molds often utilize hot runner systems to minimize scrap and improve cycle times, while cold runner designs may be preferred for cheaper tooling or simpler parts. The choice between single cavity and multi cavity configurations depends on part complexity and annual volume.
Design considerations for automotive parts
When designing a mold for automotive components, engineers focus on tolerances, functional fit, and long-term wear resistance. Geometries are specified using GD and T standards; surface finishes must support glossy or textured aesthetics depending on the part. Insert molding and overmolding enable assembly of hard inserts or multiple materials within one shot, reducing assembly steps and improving performance. Material selection for the injected resin matters; high temperature, impact resistant polymers reduce warpage and improve dimensional stability. The gating layout, cold slug prevention, and venting influence part quality and cycle efficiency. Engineers also plan for mold life and repairability, including modularity of components and easy access for maintenance. Finally, validation through prototype testing and process windows ensures the mold will perform under manufacturing conditions.
Manufacturing workflow and equipment
The production workflow starts with mold fabrication and proofing, followed by machine setup on an injection molding press that provides clamping force suitable for the part size. The mold contains cavities, cores, cooling channels, gates, and ejector pins. Cooling channels govern heat removal and cycle time; improper cooling can cause warpage or dimensional drift. Mold designers incorporate alignment features, robust ejector systems, and appropriate lubrication to minimize wear. In automotive applications, production runs emphasize automation and reliability; multiple molds may be indexed on a single line with robotic handlers moving parts between stations. Quality checks occur at multiple stages, including first article inspection and inline checks for dimensions, surface finish, and wall thickness. The collaboration between toolmakers, material suppliers, and vehicle engineers is essential to ensure the molded parts integrate smoothly with downstream assembly lines.
Quality control and testing
Maintaining quality in automotive mold production requires rigorous QA practices. Dimensional accuracy is verified with coordinate measuring machines (CMM) and statistical process control charts to detect drift. Surface finish and texture are assessed by tactile and visual inspection, as certain defects influence assembly fit. Process monitoring tracks injection speed, temperature, and pressure to keep part properties consistent across batches. A well-documented first article inspection (FAI) provides baseline data for future production. Documentation also supports traceability in recalls or warranty events. A robust preventive maintenance program for the mold itself reduces unexpected downtime and extends tool life by addressing wear at early stages. As with any critical manufacturing process, continuous improvement and supplier collaboration help maintain reliable automotive components.
Common challenges and troubleshooting
Even with careful design, molds face challenges in production. Warpage, sink marks, and flash can appear if the part geometry is complex or if the resin flow is improperly balanced. Inadequate cooling leads to cycle time increases and inconsistent part quality, while improper venting can trap air and create surface defects. Short shots and incomplete fills occur when the melt or shot size is insufficient or the gating is misconfigured. Maintenance issues such as worn cavities or damaged ejector pins cause dimensional variation and poor release. Troubleshooting often requires adjusting process windows, reseating or replacing inserts, and rebalancing the gating network. Collaboration with the resin supplier to understand material behavior under temperature and pressure is also crucial for long-term stability.
Sustainability and future trends in automotive molding
The industry is moving toward lighter, more durable plastics and more efficient mold designs. Engineers increasingly use high performance engineering polymers and reinforced fillers to achieve stiffness with less weight. Recycling and circularity are guiding the choice of materials and the lifecycle management of molds. Digital twins and simulation tools help optimize mold design and process parameters before any physical tooling is built, reducing waste and downtime. Predictive maintenance supported by sensors and data analytics minimizes unexpected tool failure and extends tool life. As automakers pursue electrification and new vehicle architectures, molds must adapt to novel geometries, multiple materials, and stricter dimensional tolerances.
FAQ
What is an automotive injection mold?
An automotive injection mold is a precision tool used to shape car parts by injecting melted plastic into a cavity. It is designed for high-volume production with tight tolerances and reliable surface finishes, ensuring consistent parts across thousands or millions of units.
An automotive injection mold is a precise tool used to shape car parts by injecting melted plastic into a cavity for high-volume production.
How does hot runner differ from cold runner in automotive molds?
A hot runner system keeps the plastic molten within the mold’s runner path, reducing waste but increasing tooling complexity and cost. A cold runner uses a separate runner that is ejected with the part, which lowers initial tooling cost but can increase scrap.“
Hot runners keep plastic molten in the mold, reducing scrap but costing more; cold runners eject the runner with the part and are simpler on tooling.
What materials are commonly used for automotive injection molds?
Automotive molds are typically built from high-strength steels or aluminum alloys, chosen for durability, machinability, and wear resistance. Surface treatments and coatings extend tool life, especially for high-volume applications.
Molds are usually made from strong steels or aluminum alloys, with coatings to resist wear for long production runs.
How long does it take to manufacture parts with automotive injection molds?
Production lead times vary with part complexity and material; initial setup and validation can be longer, but once optimized, automated lines produce parts consistently over many cycles.
Lead times vary, but after setup, automated molding can produce parts consistently over many cycles.
What maintenance is required for automotive molds?
Regular inspection, cleaning, lubrication, and corrosion protection help prevent wear and failure. Periodic component checks and rework ensure dimensional stability and prolong mold life.
Mold maintenance includes cleaning, lubrication, and regular inspections to keep it accurate and lasting.
Why is mold quality important in automotive manufacturing?
Mold quality directly affects part accuracy, fit with assemblies, safety, and warranty costs. Poor mold performance can lead to recalls and costly downtime.
Mold quality matters because it affects part fit, safety, and overall manufacturing costs.
The Essentials
- Define the part and mold requirements early
- Choose hot runner or cold runner based on part and cost
- Plan for maintenance to maximize mold life
- Validate with prototypes and process windows
- Collaborate with material suppliers and toolshops
