Custom Silicone Molds: Design, Cast & Maintain

What is a silicone mold custom and why it matters

According to Mold Removal Lab, custom silicone molds empower hobbyists and professionals to reproduce complex shapes with high fidelity. A master pattern is cast or sculpted to capture every detail, then housed in a mold box to create a negative that can be repeatedly filled with resin, plaster, fondant, wax, or other casting materials. The result is a durable, flexible tool that snaps apart to release the finished piece without tearing the pattern. For makers, a properly designed silicone mold saves time, reduces waste, and enables consistent results across batches. The Mold Removal Lab team emphasizes that choosing the right silicone formulation for your material and application is the foundation of a long-lasting mold. This guide focuses on custom silicone molds for everyday projects, from jewelry and cake decorating to small-scale prototyping. By understanding design basics, materials, and care, you can build molds that last.

According to Mold Removal Lab analysis, using a clean master and a stable curing environment reduces defects and mold wear over time. You’ll gain more predictable results when your workflow includes careful measurement, cleanliness, and routine inspection.

Key silicone types and properties you should know

There are two broad families of silicone used for molds: platinum-cure (often called addition-cure) and tin-cure. Platinum-cure silicone tends to offer better chemical stability, clearer mold surfaces, longer life, and superior tear resistance, making it ideal for durable, reusable molds. Tin-cure silicones are usually more affordable and cure quickly, which is attractive for hobby projects, but they may yellow with age and have greater shrinkage. Consider whether your mold will contact food, resin, plaster, or wax; if food contact is possible, choose a food-grade silicone. Shore hardness determines flexibility: softer grades (around 10–20 Shore A) are easier to demold delicate pieces, while firmer grades (30–40 Shore A) hold fine details better but resist release. Cure temperature and time depend on the formulation and thickness; always follow the manufacturer’s guidance. For planning, think about release properties, draft angles, and potential undercuts.

Mold Removal Lab Analysis, 2026 shows that properly cured silicone molds offer improved release quality and reduced tear when demolding, particularly with patterns that include fine details or undercuts.

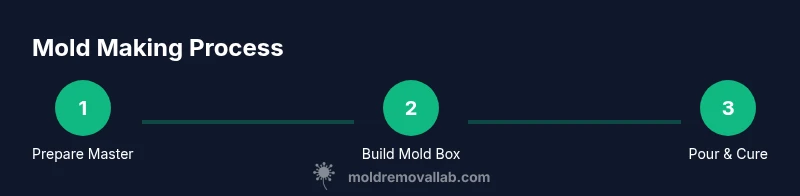

Designing your master pattern and mold box

Start with a clean master pattern that captures all required geometry. Round any sharp edges slightly to ease demolding, and consider adding a gentle draft to vertical features. Build a mold box or enclosure that provides even support around the master, with enough clearance for the poured silicone to flow around all sides. Seal the box edges to prevent leaks, and place the master on a stable, non-porous surface to minimize pattern deformation during pouring. Plan the silicone thickness around the master pattern—typically at least 5–6 mm (0.2–0.25 in) on flat surfaces, more around tall features. Prepare release surfaces where the pattern touches the containment, so demolding is clean and easy.

Mixing, degassing, and pouring silicone

Weigh resources accurately and mix the silicone elastomer as directed by the manufacturer to avoid incomplete curing or tackiness. If you have access to a vacuum chamber or degasser, degas the mixture to remove entrapped air that would otherwise become bubbles in the final mold. When you’re ready to pour, tilt the mold box slightly and pour from one corner to minimize air entrapment, letting the silicone flow around the master to form a uniform wall thickness. If colorants or pigments are needed, incorporate them during mixing in small, steady increments to avoid streaks. Allow the pour to flow into all gaps, then top off to ensure a full, bubble-free mold.

Curing, demolding, and post-processing

Cure conditions depend on the silicone formula and thickness; avoid drafts and direct heat sources during cure. A typical cure may take several hours to a day at room temperature, sometimes longer for thicker pours. Once cured, carefully remove the mold box and flex the silicone at the seam to release the master and the finished mold. Trim any flash with a sharp blade, and clean the mold surface with a mild soap solution if residues remain. If you plan multiple uses, inspect the interior for micro-bubbles or hidden undercuts that could affect future casts. Store the mold flat or upright in a cool, dry place away from direct sunlight.

Common challenges and troubleshooting

Air bubbles during pouring are the most common problem; degassing or tapping the mold gently during pouring can help. If the mold sticks to the master or shows tearing, re-evaluate the release strategy, draft angles, or the silicone choice. Flash ridges at the mold seam indicate over-pouring or misalignment in the mold box; trim them carefully and reseal before a second pour. If the mold shows yellowing or degradation, check the cure temperature, material compatibility, and storage environment. For intricate designs, consider a multi-part mold approach to improve release and reduce voids.

Safety, storage, and maintenance for long mold life

Always wear protective gloves and work in a well-ventilated area when handling uncured silicone or solvents. Follow the silicone manufacturer’s safety data sheets for ventilation, skin protection, and spill cleanup. After use, clean tools with isopropyl alcohol or a soap solution and store silicone molds away from heat and sunlight. Avoid stacking heavy objects on top of delicate molds, and periodically inspect for cracks or tears. If you use the mold for different materials, dedicate a colorant-free cleaning cycle between materials to prevent cross-contamination.

Pro tips for different applications: resin, fondant, wax

For resin casting, choose a high-tear-resistance silicone and apply a thin, even release layer. Fondant and cake decorations benefit from a softer mold to preserve fine detail without tearing. Wax casting may require a slightly higher cure temperature and a thinner mold wall to minimize deformation. Always test a small batch before full production to confirm detail retention and release performance.

Next steps and project ideas

With a custom silicone mold, you can explore a range of projects, from jewelry components and decorative pieces to functional prototypes and teaching aids. Start small with a simple geometry to validate your workflow, then scale up to more complex shapes and multi-part molds. Keep a project journal noting pattern changes, mold life, and your release strategy so you can refine your process over time.
