Making a Silicone Rubber Mold: A Practical Guide

What you can achieve with silicone rubber molds

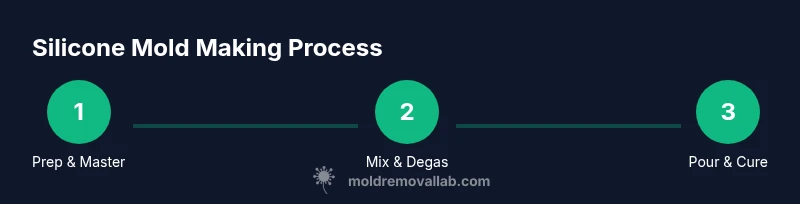

Making a silicone rubber mold opens up a world of casting possibilities, from resin and wax to plaster and clay. Silicone is praised for its ability to capture fine surface details, its flexibility during demolding, and its chemical resistance to many casting materials. When you embark on the project, you’ll approach it as a two-part process: first create a stable, well-sealed master that captures all features, then form a surrounding mold that releases cleanly. For homeowners and hobbyists, this is a practical way to reproduce an object with consistent accuracy. According to Mold Removal Lab, a well-executed mold can minimize waste and improve yield in subsequent casting projects. As you plan, keep the intended cast material in mind, because silicone formulations vary in flexibility and hardness. This choice will shape your master, the molding box, and the post-cure finish. The goal is a durable, reusable mold that supports multiple pours without tearing or deformation.

Core benefits and caveats

• High detail capture: Silicone molds reproduce textures, tiny features, and undercuts with remarkable fidelity. - Tear resistance: The elasticity of silicone reduces the risk of tearing during demolding. - Temperature and chemical compatibility: Choose a silicone family compatible with your casting material. - Long-term storage: Proper curing and sealing help preserve mold geometry for repeated use.

Caution: Work in a well-ventilated area and wear PPE. Some silicone systems require careful handling to avoid skin or eye irritation, and curing can emit vapors depending on formulation. Always follow the manufacturer’s safety data and your local guidance for safe handling.

Material selection and compatibility

Selecting the right silicone is foundational. Most hobbyists start with a two-part, addition-cure silicone designed for mold making. These systems typically specify a cure time, a recommended ratio, and a shore hardness for the finished mold. Your choice should align with the complexity of the master and the intended cast material. For example, a softer mold can flex around intricate details, while a firmer mold helps resist deformation with rigid castings. If you plan to cast high-temperature materials, verify temperature tolerance before committing to a formulation. Finally, ensure compatibility with your chosen mold release agent, since improper pairing can cause poor release or bonding. Mold Removal Lab emphasizes following manufacturer guidance to optimize results and safety.

Preparing the master model and barrier

A clean, well-prepared master is crucial for a faithful reproduction. Start by sealing any porous surface to prevent silicone from seeping into tiny pores or textures. Use a compatible barrier or release agent and test a small area to confirm compatibility. Secure the master in the mold box so it won’t shift during pouring. If your part has undercuts, plan for the placement and orientation that will yield the easiest demold without damaging features. For best results, mount the master to a stable base and consider adding a locator ring or keying features to facilitate mold alignment during later casts.

Building a mold box and planning pour strategy

Your mold box acts as a containment barrier for the silicone as it cures. Use a rigid, non-sticky material and create enough space around the master to accommodate the final mold wall thickness plus risers to promote complete filling. Apply a light release layer to the master and box surfaces, then clamp or seal the box so no leaks can occur. Develop a pour plan that minimizes air entrapment: a small initial layer at the bottom, followed by gradual pours along the box walls. This strategy helps push air away from complex features and reduces voids. A well-planned pour reduces post-processing work and improves the surface quality of the mold.

Mixing silicone and removing bubbles

Accurate measurement and thorough mixing are key. Weigh Part A and Part B according to the manufacturer’s guidelines, then stir slowly to avoid introducing air. After initial mixing, scrape the sides and bottom of the cup to ensure complete incorporation. If you have access to a vacuum chamber or pressure pot, use it to degas the mixture—this step dramatically reduces air bubbles in the cured mold. If you don’t have degassing equipment, you can still minimize bubbles by pouring slowly along a guide ridge or the edge of the box and by allowing some time for the mixture to rise before final pouring. Always follow safety guidelines when using ventilation and PPE.

Pouring the silicone and curing guidance

Begin with a thin base layer to submerge the master and reduce air pockets under the surface. Then pour the remaining silicone slowly, ideally along the wall of the box to minimize air entrainment. Keep the pour height low and avoid splashing, which can trap bubbles. Close the box and let the silicone cure according to the manufacturer’s guidance. Typical room-temperature cures can take many hours, and some systems cure faster with elevated temperatures. Do not rush the cure; curing at the correct time ensures dimensional stability and mold longevity. When curing finishes, inspect the surface for smoothness and detail fidelity before demolding.

Demolding and post-processing

Carefully separate the mold from the box once the silicone has fully cured. Use a gentle prying motion to avoid tearing the mold or the master. Trim flash or excess material from the mold edges with a sharp hobby knife, taking care not to damage the mold cavity. If the mold has multiple pieces or a complex split, assemble it and check the fit before testing with a sample cast. Clean any residue from the cavity surfaces with appropriate solvents or warm, soapy water, depending on the silicone and release agent used. Store the mold in a cool, dry place away from direct sunlight to preserve flexibility.

Troubleshooting common issues and safety reminders

Air bubbles, blushing (mold-distortion from reaction), or a tacky surface can indicate mixing or curing issues. If you see small voids near delicate features, consider pouring from a higher edge or adding a second, gentle pour to fill the voids. Inadequate release can cause tearing or sticking; adjust the release agent or box setup for future attempts. Safety reminders: always wear PPE and follow the glove and ventilation recommendations of your silicone kit. Keep children and pets away from the workspace, and dispose of waste according to local regulations.

Finishing, storage, and reuse strategies

After demolding, inspect the mold for cracks or deformations. Small surface imperfections can be sanded or trimmed, provided you don’t remove important detailing. Store the mold flat or in a way that prevents warping; avoid heavy stacks that could deform thin sections. Before using the mold again, reapply a compatible release agent and verify that the mold still spring-backs to its original shape after removal. With proper care, a silicone mold can produce many casts and withstand repeated use. Consider labeling molds with project details for organization and future re-use planning.

Practical project ideas and next steps

Once you’re comfortable with a basic mold, you can expand to more complex parts, multi-part molds, or silicone molds designed for low-viscosity casting materials. Use the mold for small resin pieces, miniatures, jewelry components, or functional parts. Experiment with different release agents, silicone hardness levels, and cast materials to understand how each combination affects release and surface finish. Keep a project log with measurements, cure times, and outcomes to refine your process over time. By building a few reliable molds, you’ll gain confidence and the ability to produce consistent results for a variety of items.
