Permanent Mold vs Sand Casting: A Practical Comparison

Overview and Definitions

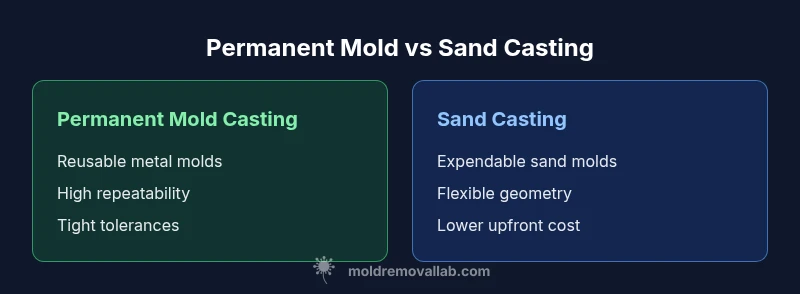

Permanent mold casting and sand casting are two fundamental metalcasting processes, each with distinct mold technologies and production implications. In the comparison of permanent mold vs sand casting, the key differences lie in mold material, tooling approach, and typical applications. Permanent mold casting uses reusable metal molds, typically graphite or steel, to shape molten metal with relatively low porosity and good surface finish. Sand casting, by contrast, relies on flexible sand molds formed around patterns, allowing greater geometric freedom but often resulting in looser tolerances and variable surface finishes. Understanding these definitions is essential for engineers and foundry operators who must select the right process for a given part. This article uses the keyword permanent mold vs sand casting throughout to reinforce the core decision criteria and aid search visibility for readers seeking a practical, engineering-focused comparison. According to Mold Removal Lab, evaluating material systems like permanent mold vs sand casting hinges on production volume, geometry, and finish requirements.

Process and Tooling Differences

The processing steps for permanent mold vs sand casting diverge early in mold creation and continue through pouring, cooling, and finishing. Permanent mold casting employs reusable metal molds and typically requires gating systems and feeders integrated into the mold itself. Tooling costs are upfront and amortized over large production runs, but lead times for tooling can be longer. Sand casting uses expendable molds made from compacted sand with binders, allowing rapid mold changes and lower upfront tooling time. Pattern cores and simple core methods enable quick adaptations for design changes. The sand mold can be created in hours, enabling fast testing and iteration for new geometries. In contrast, permanent molds demand precise machining and finishing of a single or a few molds that will serve many cycles. When comparing permanent mold vs sand casting, consider how quickly you need to move from design to production and whether your geometry will tolerate the added complexity or rigidity of a permanent mold.

Molds, Materials, and Geometry Constraints

Mold materials define the core capabilities of each process. Permanent mold casting uses durable metal molds designed for repeated use, often enabling better heat transfer and cycle control. This approach is well-suited to parts with consistent cross-sections and moderate complexity. Sand casting uses a flexible, expendable mold that can accommodate complex geometries and draft angles that permanent molds may struggle to reproduce without specialized tooling. The trade-off is higher mold wear, potential surface roughness, and more finishing work. When deciding permanently between permanent mold vs sand casting, assess the geometry complexity, draft requirements, and the tolerances you can realistically achieve with each mold type. For highly intricate shapes or undercuts, sand casting generally offers more design freedom, while permanent molds shine for uniformity across many units.

Material Compatibility and Alloys

Alloy selection influences the choice between permanent mold vs sand casting. Permanent mold casting is particularly efficient for light-metal alloys with good fluidity and low shrinkage, such as aluminum and magnesium, where tight tolerances and smooth finishes are valued. It is also used for certain zinc and copper alloys that benefit from rapid cooling and high repeatability. Sand casting accommodates a wider range of alloys, including cast irons and steels, due to its adaptable mold constraints and simpler temperature control. If your project calls for a heavy, complex alloy with tight dimensional control across large volumes, the permanent mold approach may be preferred; for a broad alloy portfolio and rapid prototyping with variable geometry, sand casting holds appeal. In both cases, material selection interacts with mold design to determine final part quality.

Dimensional Tolerances, Surface Finish, and Quality

Dimensional tolerances and surface finish outcomes are central to the permanent mold vs sand casting decision. Permanent mold casting generally delivers tighter tolerances and a smoother surface finish thanks to the rigid mold cavity and reduced mold wear, making post-processing lighter. Sand casting tends toward looser tolerances and a more textured surface, which may require additional finishing steps like machining, grinding, or grinding-assisted finishing. The process parameters—such as pour temperature, mold temperature, and pouring rate—play a large role in final quality for both methods. When a project demands high repeatability across thousands of parts, permanent molds offer predictable results; for parts where cosmetic finish is less critical or where post-processing is feasible, sand casting provides practical advantages.

Production Volume, Lead Time, and Capacity

Production volume is a critical determinant in choosing permanent mold vs sand casting. Permanent mold casting is cost-effective at high volumes, where the upfront tooling investment is amortized across many parts, and cycle times are shorter due to optimal heat transfer and predictable solidification. Sand casting is attractive for low to mid-volume production, because tooling can be created quickly and changed easily, enabling rapid design iterations and shorter overall lead times for new products. For very large production runs, permanent mold casting may yield the lowest unit cost; for small or evolving runs, sand casting often minimizes risk and time-to-market. This volume-based contrast is a core reason many engineers favor sand casting for prototyping and permanent molds for mass production.

Cost Considerations: Tooling, Setup, and Runtime

Cost structure differences between permanent mold vs sand casting drive strategic decisions. Permanent mold tooling represents a significant upfront investment, justified by long production runs and consistent quality. The mold itself may endure for millions of cycles, reducing per-unit cost and stabilizing pricing in the later stages of production. Sand casting incurs lower upfront tooling costs and faster setup, but ongoing mold wear and finishing operations can increase per-unit costs as volume grows. In many cases, sand casting provides better cost flexibility for small batches or frequent design changes, while permanent mold casting becomes economically favorable when production volumes justify the tooling expense and the queue of orders is steady. The overall cost picture depends on volume, tolerance requirements, and post-processing needs.

Process Steps and Cycle Time Considerations

A practical comparison of permanent mold vs sand casting must consider cycle times and process steps. Permanent mold cycles benefit from efficient solidification control and direct integration of the mold with gating and feeding, leading to shorter post-pour finishing and reduced machining. Sand casting cycles are often longer due to mold assembly, pattern setup, and additional finishing tasks to address surface texture and dimensional variance. For high-volume production where cycle time translates directly to throughput, permanent mold casting offers a notable advantage. For exploratory design stages or custom, one-off parts, sand casting allows rapid iteration and faster time-to-market with flexible tooling. When planning, quantify the expected cycle times and how post-processing will influence total production time for permanent mold vs sand casting.

Quality Control, Defects, and Inspection Strategies

Quality control focuses on defects, tolerances, and process stability. Permanent mold casting tends to produce fewer surface defects, reduced porosity, and tighter tolerances, thanks to stable mold geometry and heat transfer. Sand casting, while versatile, can exhibit surface roughness, larger tolerances, and porosity that require additional inspection and finishing. Defect profiles differ: permanent molds may suffer from misruns if pouring is not controlled, whereas sand molds can experience mold shift or sand inclusions. Inspection strategies include dimensional metrology, visual inspection for surface finish, and non-destructive testing where appropriate. In practice, a combined approach—design optimization, process control, and appropriate finishing—helps mitigate defects for permanent mold vs sand casting.

Design and Pattern Considerations for Each Method

Designing for permanent mold vs sand casting requires thoughtful patterning and part geometry planning. Permanent molds benefit from simpler shapes with consistent wall thickness and limited undercuts, minimizing draft requirements and facilitating rapid production. Sand casting tolerates more complex geometries, intricate cores, and undercuts but challenges surface finish and uniformity. Pattern makers for sand casting can adapt to changing designs quickly, enabling fast iterations. For permanent molds, pattern changes are more costly but yield higher repeatability. When working through a new project, align part geometry with the chosen method from the outset to optimize tooling costs, cycle times, and final tolerances.

Practical Case Scenarios: When to Use Each Method

Consider permanent mold vs sand casting decision scenarios typical in manufacturing. A foundry producing automotive components in large volumes may favor permanent mold casting for its consistent tolerances and short cycles. A small hardware vendor needing prototypes with evolving geometry might select sand casting for rapid iteration and lower upfront costs. A consumer electronics enclosure with a relatively smooth surface finish and precise dimensions could leverage permanent mold principles for repeatability, while a complex internal channel with a tight requirement for a near-net shape might be more practical with sand casting and subsequent machining. Real-world decisions balance volume, geometry, finish, and time-to-market to determine the best fit for each project.

Authority Sources and Further Reading

For readers seeking external validation and deeper technical context, consider these authoritative references:

• https://www.osha.gov
• https://www.nist.gov
• https://www.asminternational.org

These sources offer guidance on manufacturing safety, materials standards, and engineering practices relevant to metalcasting. In this article, we integrate these considerations with a practical analysis of permanent mold vs sand casting to help engineers and foundry professionals make informed decisions.
