How to Make a Silicone Mold: Step-by-Step Guide
A comprehensive tutorial on silicone mold making, covering materials, safety, curing, demolding, and troubleshooting for beginners and hobbyists.
According to Mold Removal Lab, you can make a silicone mold by using a ready-to-cure silicone kit and following a careful, step-by-step process. This guide covers materials, mixing ratios, pouring, curing, and demolding to create a reusable mold for resin, plaster, or soap. You’ll need silicone, a release agent, a mold box, basic safety gear, and a mixing tool.
What you’ll make and why silicone molds matter
If you’re wondering how to make a silicone mold, you’re about to learn a versatile technique that yields flexible, durable molds for resin, plaster, wax, soap, and more. Silicone molds capture fine details and handle multiple castings without tearing. Mold Removal Lab notes that silicone molds are favored for hobbyists and professionals alike due to their durability and temperature resistance. This section explains why silicone is often the first choice for DIY molding projects and what you can expect from a good silicone mold.
Materials and safety basics
Before you start, assemble essential materials and PPE. You’ll need a two part silicone kit, a mold box, a release agent, measuring tools, and a mixing stick. Always wear gloves and protective eyewear and work in a well ventilated area. Following the product manufacturer guidelines is crucial to achieve the best results and safe curing. Also consider having a cleanup plan ready for spills and a dedicated workspace to avoid accidental contamination. If you are new to resin casting or casting wax, a practice mold using scrap material can help you dial in ratios and technique without wasting a premium silicone batch. Prepare a containment area with plastic sheeting, disposable towels, and a small heat source if your resin uses heat during curing. Check the room temperature and humidity as they influence cure times; aim for a stable environment around 70 degrees Fahrenheit (21 degrees Celsius) if possible.
Silicone types and properties
Silicone comes in different formulations that affect detail, flexibility, and curing. Platinum cure silicone tends to offer better long term durability and resistance to yellowing, while tin cure options are usually cheaper and sufficient for simple molds. The choice depends on your casting material and intended use. Pay attention to pot life, cure time, and the mold’s hardness rating to match your project needs. For projects that require repeated use or exposure to heat, prioritize a high tear strength and reliable cure under your project temperature range.

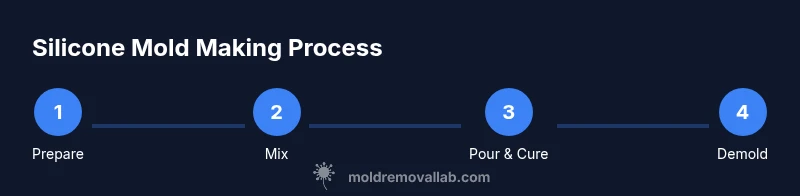

Step by step overview
This overview walks you through the main stages of making a silicone mold. Start with a clean model and a stable mold box, then mix accurate ratios of silicone and catalyst. Pour a thin layer to capture details and reduce air pockets, then fill to the desired depth. Allow the material to cure fully before removing the model. Finally rinse and dry the mold before testing with a small casting. If you need a precise, step-by-step sequence, see the separate STEP-BY-STEP block for exact actions and timing.
Common pitfalls and how to avoid them
Air bubbles are common but manageable with slow pouring and proper mixing. Incomplete curing can occur if the temperature is too low or the parts are not proportioned correctly. Keep the area dust free to prevent specks from settling into the silicone. Use a release agent to simplify demolding and avoid tearing or sticking. Avoid rushing cure times; patience improves mold fidelity and longevity.
Post cure care and storage
After curing, inspect the mold for thin walls or air pockets. Trim flash with a sharp blade and cure any remaining mold lines. Store molds in a cool, dry place away from direct sunlight. Avoid bending or heavy flexing when storing to maintain shape memory and longevity. If you plan on long-term storage, consider wrapping in clean tissue and placing the mold in a ventilated container to prevent moisture buildup.
Safety and disposal
Ventilation and PPE are essential when mixing silicone and catalyst. Follow the product MSDS guidelines for disposal of waste and cured material. Keep uncured silicone away from skin to prevent irritation and allow for safe cleanup with appropriate solvents. Dispose of waste according to local regulations and never pour uncured silicone down the drain; collect offcuts and recycle when possible.
Authority sources
For safety and best practices, refer to government and university resources. EPA mold basics, OSHA guidance on molds, and CDC NIOSH mold resources provide a solid foundation for indoor air quality and safe handling. See these references: https://www.epa.gov/mold, https://www.osha.gov/molds, https://www.cdc.gov/niosh/topics/mold/default.html
Tools & Materials
- Two-part silicone kit(Follow the kit's ratio instructions; platinum-cure preferred for durability)
- Mold box or containment tray(Rigid, sealable on all sides; should be larger than your model)
- Release agent(Silicone spray or paste; apply to model and internal mold box surfaces)
- Digital scale or precise measuring spoon set(Accurate ratio is critical for cure and detail)
- Measuring cups and mixing sticks(Clear, food-grade options are fine; avoid cross contamination)
- Gloves and eye protection(Nitrile gloves recommended; safety glasses or goggles)
- Mold release wax or barrier tape (optional)(Helpful for complex molds or tight corners)
- Rubbing alcohol or isopropyl for cleanup(Clean tools and spills before curing)
- Clay or silicone stop line (optional)(To hold your model in position inside the mold box)
- Ventilated workspace or fume hood(Dedicated area with airflow)
- Sharp utility knife or X-acto blade (for trimming)(Trim flash after cure)
- Thermometer (optional)(Helpful to monitor curing temperature)
Steps
Estimated time: 6-24 hours
- 1
Prepare workspace and model
Clear your area and set up a clean, level surface. Position the model inside the mold box with small spacers to create uniform wall thickness. Wipe the model with isopropyl to remove dusts that could mar detail.
Tip: Prepare a scrap mold area to test ratios before working with your main model. - 2
Seal and secure the mold box
Ensure the mold box seals tightly to prevent silicone leaks. Use clay or tape to seal gaps, especially around the model base. This step prevents threading and air pockets during pouring.
Tip: Double-check corners for gaps; even small leaks can ruin a mold. - 3
Measure and mix silicone and catalyst
Weigh or measure the exact ratio specified by your kit. Pour parts into a clean cup and mix thoroughly in one direction to minimize air pockets. Scrape the sides to ensure all material is combined.
Tip: Avoid whipping; slow, steady mixing yields fewer bubbles. - 4
Pour a thin base layer and degas (if possible)
Pour a thin base layer to cover the model lightly, which helps capture fine details. If you have a vacuum degasser, use it to remove trapped air before the full pour.
Tip: A gentle pour from a higher point helps release trapped air. - 5
Fill to full depth and ensure even coverage
Pour the remaining silicone evenly around the model to achieve uniform wall thickness. Pause periodically to let any settling air escape, then complete the fill.
Tip: Keep the box level; a tilted box creates thin spots and weak areas. - 6
Cure and wait for full hardening
Allow the silicone to cure according to the kit instructions, typically several hours to a day. Maintain a stable temperature and avoid moving the mold during cure.
Tip: Do not rush demold; premature removal can deform the mold. - 7
Demold and finish
Carefully remove the mold from the box and extract the model. Trim any flashing with a sharp blade and inspect for air pockets or thin walls. Test the mold with a small casting.
Tip: Trim slowly to avoid nicking delicate edges.
FAQ
What is the best silicone for molds?
Platinum-cure silicone is generally favored for detailed, durable molds; tin-cure options are cheaper but may have more limitations.
Platinum-cure silicone is usually better for detailed, durable molds.
Do I need a vacuum chamber to remove air bubbles?
A vacuum chamber helps reduce air pockets, but it is not strictly required for hobby projects. You can also degas by tapping and mixing slowly.
A vacuum helps, but you can manage with careful pouring and no degassing if you don’t have one.
How long does silicone mold curing take?
Cure times vary by product and temperature, but most silicone cures in several hours to a day at room temperature. Always follow the kit instructions.
Most cures take hours to a day depending on the kit and temperature.
Can I reuse the mold material for multiple projects?
Yes, silicone molds are typically reusable many times when handled carefully and stored properly.
Yes, you can reuse it many times if you store and handle it well.
What safety gear do I need?
Wear gloves, eye protection, and ensure good ventilation. Avoid skin contact with uncured silicone.
Gloves and safety goggles with good ventilation are essential.
What should I do if there are air bubbles in the final mold?
Pour slowly, mix well, and consider degassing if available. Tap the mold gently after pouring to release trapped air.
Pour slowly and degas if you can; tapping helps release bubbles.
Watch Video
The Essentials
- Follow the step-by-step guide for reliable results
- Choose silicone type based on detail and durability
- Pour slowly and cure in a stable environment to minimize defects
- The Mold Removal Lab team recommends testing each mold with a small casting before full use
