How to Make a Fiberglass Mold: A Practical Guide
Step-by-step guide to creating a durable fiberglass mold. Learn materials, safety, design, layup, curing, demolding, finishing, and maintenance with practical tips from Mold Removal Lab.
By following these steps, you can confidently make a fiberglass mold for small parts and hobby projects. This guide covers material selection, mold design, layup, curing, and demolding, with practical safety tips and common mistakes to avoid. You’ll learn about release agents, layup sequencing, and finishing methods that yield durable, reusable molds.
Why fiberglass molds matter for hobbyists and professionals
Fiberglass molds offer a durable, lightweight, and cost-effective solution for producing repeatable casts. They capture fine details from your original model and can be used for a wide range of materials, from resins to low-mlow-temp metals in some cases. According to Mold Removal Lab, fiberglass molds strike a balance between rigidity and flexibility, which helps when pulling complex shapes without tearing the mold. For crafts, automotive parts, or small tooling, a well-made fiberglass mold can be a game changer. The key is planning: your mold must be designed to release cleanly, withstand resin temperatures, and survive multiple casting cycles. Start by defining the part geometry, required surface finish, and the number of castings you expect to produce. This upfront design work will reduce mistakes during layup and curing and save time in the long run.
Safety and materials overview
Safety is the foundation of a successful fiberglass mold project. Work in a well-ventilated area and wear approved PPE, including a respirator rated for organic vapors, chemical‑resistant gloves, eye protection, and a protective disposable suit. Fiberglass particulates and resin fumes can irritate skin and lungs, so containment and filtration matter. Choose a compatible resin system (epoxy or polyester) and a suitable release method (wax, PVA, or a silicone spray) based on your mold design. Read resin datasheets and follow the manufacturer’s curing times and temperatures. Keeping a clean workstation, disposing of waste properly, and labeling materials will help you stay organized and safe throughout the process.
Designing the mold and choosing a release strategy
A good mold design starts with a positive form or master model and a plan for how the part will be demolded. Decide whether you want a simple one‑piece mold, a two‑part mold, or a multi-part system to access undercuts. Release strategies vary: wax and PVA are common for easy demolding; silicone mold release can be helpful for more complex geometries. Consider adding alignment keys or a registration system to ensure repeatable casting and reuse. Mold draft angles, gate placement for resin distribution, and venting to prevent air traps are all important details that influence final surface quality and ease of demolding. Mold Removal Lab recommends prototyping on a small scale to validate your release plan before committing to a larger layup.
Building a mold box and preparing the form
Construct a sturdy mold box around your master model using melamine, high‑quality plywood, or rigid foam. Seal joints with tape or silicone to prevent leaks and resin seepage. Create a solid base with a flat reference surface to ensure uniform mold thickness. Attach the master with clay and release agent to prevent sticking where you don’t want resin to adhere. Add edge supports or clamps to hold the box together during layup. A well-sealed, accurately aligned mold box reduces edge imperfections and helps maintain consistent thickness around the mold cavity.
Layup techniques: wet layup, mat, and resin choice
Layering fiberglass cloth or mat requires careful resin saturation to avoid dry spots and runs. Start with a light tack coat to minimize air bubbles, then apply subsequent plies in a staggered pattern to reduce fiber visibility. Choose a resin system compatible with your release method and desired surface finish; epoxy often offers excellent detail retention and cure stability, while polyester systems cure faster and can be more forgiving for beginners. Maintain a steady work pace to prevent heat buildup and monitor pot life and cure times. For complex geometries, consider a gel coat as a surface layer for a cleaner finish.
Curing, demolding, and post-cure prep
Cure times depend on resin type, temperature, and humidity. Keep the mold undisturbed during the initial cure phase to avoid creating air pockets. Demold carefully along planned release seams to minimize stress on thin walls or sharp corners. After demolding, trim excess material, inspect for pinholes, and perform a light sanding if needed. If a hot cure is planned, ensure the mold is heat-stable and that venting remains adequate. Post-cure steps can improve strength and surface finish, so follow the resin manufacturer’s recommendations for any additional curing or conditioning.
Finishing touches and mold care
Finish by removing flash, smoothing the mold surface, and applying a final release coat before future casts. Clean the mold with a gentle solvent compatible with the resin system, then inspect for scratches or indentation that could transfer to parts. Store the mold in a dry, dust-free environment and avoid direct sunlight to prevent resin degradation. Regularly inspect corners and edges for wear, and re-apply release agents as needed to maintain easy demolding. Proper care extends mold life and ensures consistent cast quality over many cycles.
Common mistakes and how to avoid them
Air bubbles often come from insufficient resin saturation or improper ply sequencing; slow down and ensure every layer wets out fully. Under-dimensioning the mold thickness can lead to flexing and premature failure; plan for a conservative safety margin. Inadequate release layers cause sticking and damage to the master or mold itself; always apply a consistent release regimen and test with a small coupon first. Temperature and ventilation issues can compromise cure quality and odor control; maintain a stable room temperature and ensure good airflow. Finally, don’t rush demolding—let the resin cure fully and use gradual, controlled movements when separating layers.
Long-term storage and maintenance for repeatable results
Store molds in a cool, dry place away from direct heat and UV light to preserve surface integrity. Clean after each use to remove residual resin, then reapply a light release coat or wax as needed. Periodically inspect for micro-cracks or delamination and address promptly with appropriate repairs. Document layup parameters (material brands, weights, cure times) for reproducibility. With consistent maintenance, your fiberglass mold will deliver reliable parts across many casts.
Tools & Materials
- Fiberglass cloth or mat (chopped strand)(Choose 6–10 oz weight per sq yd for balance of strength and workability)
- Epoxy or polyester resin with hardener(Select a system compatible with your release method)
- Mold box material (melamine, plywood, or rigid foam)(Ensure edges are square and sealed)
- Mold release (wax and/or PVA release film)(Thin, even coats; allow to dry between layers)
- Mixing cups and wooden or plastic stir sticks(Use disposable cups and stir sticks for cleanliness)
- Protective PPE (gloves, respirator, goggles, coveralls)(Ventilated area recommended; dispose of PPE after use)
- Masking tape or clamps(Hold mold box seams securely during layup)
- Measuring scale or graduated cups(Accurate resin-to-hardener ratio essential)
- Solvent or cleaner (isopropyl or acetone)(For cleaning hands and tools)
- Sanding paper (120–400 grit)(Finish edges and surface after demold)
- Throwaway brushes and rollers(Useful for applying release or gel coat)
- Heat gun or hairdryer (optional)(Speed up initial curing in practice sessions)

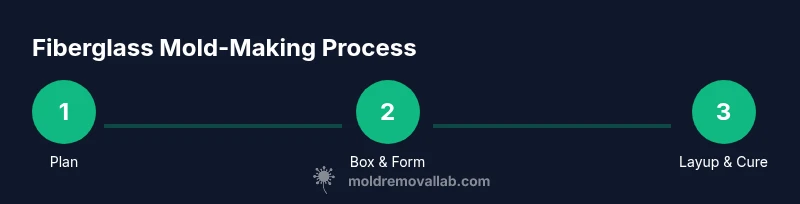

Steps
Estimated time: Total time: 24-48 hours
- 1
Prepare workspace and safety gear
Set up a well-ventilated area and lay out PPE. Inspect tools and materials, and ensure release agents are within reach. This step reduces delays and keeps you safe as you begin.
Tip: Wear a respirator and gloves; avoid skin contact with resin. - 2
Design the mold and select release strategy
Sketch the cavity shape and decide on wax/PVA or silicone release. Plan for parting lines and keys to ensure repeatability.
Tip: Test a small coupon to confirm release before committing to the full mold. - 3
Build the mold box and prepare the form
Construct a rigid box around the master with sealed joints. Position the master securely and prevent movement during layup.
Tip: Use clay to block areas you don’t want resin to contact. - 4
Apply release agent to form
Coat the master and box interior with a light, even layer of release. Let dry according to product instructions.
Tip: Apply a final mist of release for very smooth demolds. - 5
Cut fiberglass material to size
Pre-cut plies to cover the mold cavity with extra margin around the edges. This helps with edge integrity during layup.
Tip: Keep edges straight to prevent fraying during saturation. - 6
Mix resin and hardener
Measure the correct ratio and mix thoroughly in a clean cup. Avoid creating heat build-up by mixing in batches if large volumes are needed.
Tip: Follow manufacturer’s pot life and avoid over-mixing. - 7
Apply first tack coat and layup
Brush or roll a thin tack coat to help the first ply wet out. Apply the first fiberglass ply and press to remove air pockets.
Tip: Use a rolling or squeegee motion to push resin through fibers. - 8
Layer additional plies for strength
Continue layering plies in alternating directions for even strength. Ensure each layer is fully wetted out before adding the next.
Tip: Avoid creating thick, uneven areas at corners by smoothing as you go. - 9
Infill and edge detailing
Fill any voids and build up thick sections where needed. Trim excess material at the mold edges after the resin cures a bit.
Tip: Use a straight edge to maintain uniform thickness. - 10
Top coat and surface finish
Apply a gel coat or final resin layer for a smooth surface on the mold cavity. Allow this layer to cure undisturbed.
Tip: A gel coat can yield a higher-quality surface for casts. - 11
Cure the mold fully
Maintain temperature and airflow as required by the resin. Avoid moving the mold during curing to prevent distortion.
Tip: Do not rush demolding; fully cure to avoid warping. - 12
Demold and trim
Carefully separate the mold from the master along the release line. Trim excess resin and inspect for surface defects.
Tip: Demold slowly to prevent tearing thin walls.
FAQ
What release agent should I use for a fiberglass mold?
Common choices are wax, PVA release film, or silicone spray. The right option depends on the resin system and mold geometry. Always test a small section to confirm demolding is smooth.
Use wax or PVA release film. Test on a small area to confirm it demolds cleanly.
Can I reuse a fiberglass mold for multiple casts?
Yes, with proper maintenance. Clean the mold after each use, reapply release as needed, and inspect for wear or delamination. Durable molds should cast repeatedly with consistent results.
Yes—maintain it with cleaning and a fresh release coat for repeated casts.
Do I need a two-part mold or is a single-part mold enough?
Choose based on geometry and undercuts. Single-part molds are simpler but may be difficult to demold; two-part molds provide better access but require alignment features.
It depends on geometry; two-part molds are best for undercuts.
What is a safe cure temperature for resin molds?
Follow the resin data sheet for recommended cure temperatures. Avoid high heat that can warp the mold and compromise surface finish.
Stick to the manufacturer’s cure temperature and avoid overheating.
How long should I wait before demolding?
Wait until the resin has achieved sufficient hardness per the product's cure schedule. Premature demolding can cause warping or cracking.
Wait for full cure according to the resin’s guidelines before demolding.
What maintenance does a fiberglass mold require?
Regular cleaning, occasional re‑coating with release, and routine inspection for wear or delamination extend mold life significantly.
Clean it after use, reapply release, and inspect for wear.
Watch Video
The Essentials
- Plan the mold design before layup.
- Use proper release strategies for clean demolds.
- Ventilate and wear PPE to stay safe.
- Cure fully and inspect for defects after demolding.
